In the world of logistics, transportation, and moving, precision is paramount. Every inch, every pound, and every dimension matters. For businesses and individuals relying on commercial vehicles, understanding the exact "dims" – dimensions – of their chosen transport can be the difference between a smooth operation and a costly logistical nightmare. Among the most popular workhorses in this sector is the 26ft Morgan box truck. But what exactly do you need to know about the dimensions of this versatile vehicle?
This comprehensive guide will meticulously break down everything you need to know about the dimensions on a 26ft Morgan box truck. We’ll go far beyond basic numbers, exploring why these measurements are crucial, how they impact your operations, and what practical considerations you must keep in mind to optimize safety, efficiency, and cost-effectiveness. Our goal is to provide you with a pillar of knowledge, ensuring you’re fully equipped to utilize these powerful trucks to their maximum potential.
Unlocking Efficiency: A Deep Dive into Dims On 26ft Morgan Box Trucks

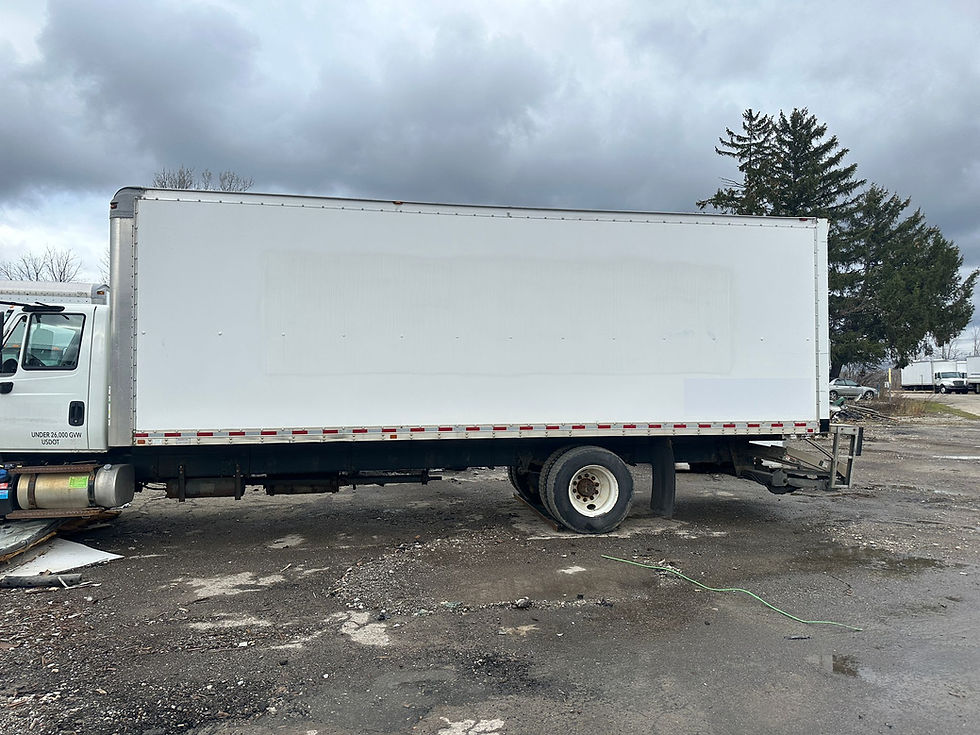

What Exactly is a 26ft Morgan Box Truck?
Before we delve into the intricate details of its dimensions, let’s clarify what a 26ft Morgan box truck truly is. Essentially, it’s a straight truck (meaning the cab and cargo area are on a single chassis) equipped with a cargo body manufactured by Morgan Corporation, a leading name in truck body solutions. The "26ft" typically refers to the nominal length of the cargo box itself.
These trucks are incredibly popular for a wide range of applications. You’ll find them extensively used in local and regional deliveries, furniture moving, appliance transport, general freight, and even by rental companies for DIY moves. Their size offers a substantial cargo capacity without requiring a Commercial Driver’s License (CDL) in most jurisdictions, making them accessible to a broader pool of drivers. This accessibility, combined with their robust construction, makes the 26ft Morgan box truck a staple in various industries.
Why Are Dimensions So Critically Important for Your Operations?
Understanding the precise dimensions of your 26ft Morgan box truck isn’t just about satisfying curiosity; it’s a fundamental requirement for safe, legal, and efficient operation. Overlooking even a single dimension can lead to severe consequences, from damaged cargo and vehicle breakdowns to costly fines and dangerous accidents.
Based on my experience overseeing countless logistics operations, accurate dimension knowledge is the bedrock of effective planning. It impacts everything from route selection and loading procedures to compliance with weight restrictions and even fuel efficiency. Ignoring these details is a common mistake that can significantly erode your profit margins and damage your reputation.
Consider the ripple effect: an incorrectly estimated height could lead to striking a low bridge, causing extensive damage and significant delays. Underestimating interior width might mean your critical machinery doesn’t fit, halting an entire project. These are not just minor inconveniences; they are operational failures that can have widespread financial and safety implications.
Unpacking the Exterior Dimensions of a 26ft Morgan Box Truck
The exterior dimensions are your first line of defense against logistical challenges. These measurements dictate where your truck can go, what routes it can take, and what obstacles it can safely clear. Getting these wrong can lead to serious incidents.
Overall Length: More Than Just "26 Feet"
While commonly referred to as a "26ft box truck," this figure primarily indicates the nominal length of the cargo box. The overall length of the entire vehicle, from bumper to bumper, will be significantly longer due to the cab, chassis, and any rear extensions like liftgates.
Typically, a 26ft Morgan box truck will have an overall length ranging from approximately 33 to 36 feet. This extra length is crucial for maneuverability, especially when navigating tight turns, crowded loading docks, or busy urban streets. Always account for this full length during route planning and when assessing parking spaces.
Overall Width: Beyond the Box Itself
The width of the cargo box is usually around 96 to 102 inches (8 to 8.5 feet). However, the overall width of the truck is greater due to protruding elements. Side mirrors, which are essential for safe driving, add substantial width to the vehicle.
Pro tips from us: When calculating overall width for tight squeezes or narrow passages, always factor in the widest point of the vehicle, which is almost always the tip of the extended side mirrors. This can add another foot or more to the effective width, pushing the total to around 10 to 11 feet. Failing to consider mirror width is a common mistake that can result in costly damage in confined spaces.
Overall Height: The Most Critical Exterior Dimension
The overall height is arguably the most critical exterior dimension, as it directly impacts bridge clearances, overhead power lines, tree branches, and tunnel restrictions. A standard 26ft Morgan box truck typically has an overall height between 12 feet 6 inches and 13 feet 6 inches. This can vary slightly based on the specific chassis, suspension, and any roof-mounted equipment (like aerodynamic fairings or refrigeration units).
Federal regulations in the United States often set a maximum legal height of 13 feet 6 inches for commercial vehicles without special permits. Therefore, many box trucks are designed to be at or just under this limit. However, drivers must always be vigilant. Bridge clearances can vary, and what might be a standard height in one state could be an issue in another. Always refer to truck-specific GPS systems and road signage.
Common mistakes to avoid are assuming a generic height or neglecting to factor in modifications. Even a minor addition to the roof can change your overall height and turn a safe route into a hazard. Always confirm the exact height of your specific truck before every journey, especially if it’s new to you or has been modified.
Delving into the Interior Dimensions: Your Usable Cargo Space
While exterior dimensions dictate where you can go, interior dimensions determine what you can carry. These measurements are paramount for efficient loading, cargo protection, and maximizing your payload.
Interior Length: The True Cargo Capacity
The "26ft" designation refers to the nominal exterior length of the cargo box. However, the interior usable length will be slightly less. This reduction comes from the thickness of the front and rear walls, as well as any interior lining or bracing.
You can generally expect an interior length of approximately 25 feet 6 inches to 25 feet 10 inches. This might seem like a small difference, but when you’re loading long items or trying to fit a specific number of pallets, every inch counts. Always measure the actual interior length from the front wall to the inside of the rear door to ensure your cargo will fit.
Interior Width: Navigating Wheel Wells and Wall Linings
The interior width of a 26ft Morgan box truck typically ranges from 96 to 100 inches (8 feet to 8 feet 4 inches). However, this is rarely a uniform measurement across the entire length. The most significant obstruction to interior width comes from the wheel wells.
Wheel wells protrude into the cargo area, significantly reducing the usable width for a portion of the truck’s length. Over the wheel wells, the width can narrow to as little as 60-70 inches (5 to 5.8 feet). This is a crucial detail for anyone planning to load wide items or multiple rows of pallets. You must plan your loading strategy around these narrower sections.
Furthermore, internal wall linings, tie-down rails, and any shelving systems will also slightly reduce the effective width. When measuring, always account for the narrowest point you expect your cargo to pass through or rest against.
Interior Height: Door Clearances and Ceiling Limitations
The interior height of the cargo box typically ranges from 96 to 102 inches (8 to 8.5 feet). This measurement is taken from the cargo floor to the interior ceiling. However, the rear door opening height is often slightly less than the interior ceiling height due to the door frame and the presence of a roll-up door mechanism.
For trucks equipped with a roll-up door, the effective clearance at the rear opening can be 6 to 10 inches less than the interior ceiling height. This is a critical detail for loading tall items, especially with a forklift. Always measure the actual clearance of the rear door opening. If your truck has swing-out doors, the full interior height will generally be available at the opening, but the doors themselves require clearance to open fully.
Based on my experience, a common mistake is to assume the interior height is uniform from front to back and at the door. Always verify the lowest point of entry and the lowest point within the cargo area to prevent damage to tall items or the truck itself.
Weight Considerations: Dimensions Aren’t the Whole Story
While dimensions dictate space, weight dictates capacity and legality. Understanding the interplay between dimensions and weight is crucial for safe and compliant operation of your 26ft Morgan box truck.
Gross Vehicle Weight Rating (GVWR)
Every commercial truck has a Gross Vehicle Weight Rating (GVWR), which is the maximum operating weight of the vehicle as specified by the manufacturer. For a 26ft box truck, the GVWR typically falls in the range of 25,999 lbs. This specific number is important because it is just below the 26,001 lbs threshold that generally requires a Commercial Driver’s License (CDL) in the United States.
Understanding your truck’s GVWR is not just about avoiding a CDL; it’s about safety. Exceeding the GVWR can strain the engine, brakes, suspension, and tires, leading to premature wear, mechanical failure, and dangerous driving conditions. Always consult the sticker on the driver’s side door jamb for the exact GVWR of your specific vehicle.
Payload Capacity
The payload capacity is the maximum weight of cargo (and passengers) that the truck can legally carry. It is calculated by subtracting the truck’s curb weight (the weight of the empty vehicle with a full tank of fuel) from its GVWR. For a 26ft Morgan box truck, payload capacity typically ranges from 10,000 to 15,000 lbs, depending on the chassis, engine, and any added features like liftgates.
A liftgate, while incredibly useful for loading, adds significant weight to the truck, directly reducing its available payload capacity. This is a critical factor to consider when planning your loads. Always know your truck’s exact payload capacity and never exceed it. Overloading is not only illegal but extremely dangerous, compromising braking ability and vehicle stability.
Axle Weights
Beyond total weight, weight distribution across the axles is equally important. Each axle (front and rear) has its own Gross Axle Weight Rating (GAWR). Improper weight distribution can overload a single axle even if the overall GVWR is not exceeded. This can lead to tire blowouts, suspension damage, and loss of steering control.
Based on my experience, proper load distribution is often overlooked, especially by those new to operating larger vehicles. Always aim to distribute weight evenly across the cargo floor, placing heavier items towards the front (but not overloading the front axle) and ensuring the load is balanced side-to-side. Using scales to check individual axle weights is a pro tip for ensuring compliance and safety, especially with dense or uneven loads.
Optimizing Loading and Unloading Based on Dimensions
Understanding dimensions is only half the battle; the other half is applying that knowledge to efficiently load and unload your 26ft Morgan box truck. Smart loading strategies maximize space, protect cargo, and ensure safe transit.
Maximizing Space and Protecting Cargo
Knowing your interior dimensions, especially the variations caused by wheel wells and door openings, allows for strategic planning. For instance, you might place narrower items or items that can be stacked over the wheel wells, reserving the full-width sections for wider, less flexible cargo.
Pro tips from us: Always create a loading plan before you start. Sketch out how items will fit, considering their dimensions relative to the truck’s interior. Use furniture pads, blankets, and moving straps to protect items from shifting and potential damage during transit. Don’t leave large gaps where items can move freely, as this can lead to damage and instability. For more insights into optimizing your cargo, check out our article on .
Strategic Weight Distribution
As mentioned, weight distribution is paramount. Heavier items should generally be placed on the floor, ideally centered over the axles to distribute weight evenly. Avoid stacking extremely heavy items high, as this raises the center of gravity and can make the truck less stable, especially during turns or braking.
If using a liftgate, understand its weight limit. Liftgates are powerful tools but have specific capacity restrictions that must be respected. Never attempt to lift items heavier than the liftgate’s rated capacity, as this can damage the equipment or cause serious injury.
Utilizing Ramps and Liftgates Safely
When loading with ramps or a liftgate, always ensure the truck is parked on a level surface with the parking brake engaged. Secure ramps properly to prevent slippage. If using a liftgate, ensure the area around it is clear, and always follow the manufacturer’s operating instructions.
Common mistakes to avoid are rushing the loading process or attempting to load items that are too heavy or awkwardly shaped for your equipment. Take your time, use appropriate tools, and prioritize safety above speed.
Navigating the Roads with a 26ft Morgan Box Truck
Driving a 26ft Morgan box truck is significantly different from driving a passenger car. Its dimensions necessitate a different approach to route planning, turning, and parking.
Route Planning and Obstacle Avoidance
Given the overall height of a 26ft box truck, route planning is non-negotiable. Low bridges, tunnels, and overpasses are serious hazards. Always use a truck-specific GPS system that can factor in your vehicle’s height, weight, and length to avoid restricted routes. Standard car GPS units do not provide this critical information and can lead you into dangerous situations.
Based on my experience, it’s wise to double-check routes, especially in unfamiliar areas, by looking up street views or calling ahead. Never assume a clearance if you’re unsure. The cost of a few minutes of planning far outweighs the cost of hitting an overpass.
Maneuverability and Turning Radius
The extended length and wheelbase of a 26ft box truck mean it has a much wider turning radius than a car. Making wide turns is essential to avoid hitting curbs, poles, or other vehicles. Always swing wide, especially on right turns, giving yourself ample space.
Pro tips from us: Practice driving in an empty parking lot to get a feel for the truck’s dimensions and turning capabilities before heading out on busy roads. Pay close attention to your mirrors and be aware of your tail swing, which is the amount the rear of the truck swings out during a turn.
Parking Challenges
Finding suitable parking for a 26ft Morgan box truck can be a challenge, especially in urban areas or residential neighborhoods. Look for commercial loading zones, large parking lots (like those at shopping centers during off-hours, with permission), or designated truck parking areas.
Avoid parking in areas where your truck could obstruct traffic, block fire lanes, or cause a hazard. Always leave yourself enough room to exit safely, considering your wide turning radius.
Maintenance and Modifications Affecting Dimensions
The dimensions of your 26ft Morgan box truck aren’t static; they can be influenced by maintenance and modifications. Staying aware of these changes is crucial.
Additions Like Liftgates and Aerodynamic Fairings
As previously mentioned, adding a liftgate can affect both the truck’s overall length (when extended) and its curb weight, thereby reducing payload capacity. Similarly, installing an aerodynamic fairing on the roof of the cab, while beneficial for fuel efficiency, will slightly increase the overall height of the vehicle.
Any modification should prompt a re-evaluation of your truck’s key dimensions and weight. Never assume that the "standard" dimensions still apply after an alteration.
Interior Shelving and Customizations
Many businesses customize the interior of their Morgan box trucks with shelving, E-track systems, or specialized equipment. While these additions enhance functionality, they will inevitably reduce the effective interior width and potentially height in certain areas.
When planning interior modifications, always consider their impact on your usable cargo space. Measure before and after installation to accurately update your loading plans.
Regular Checks and Verification
Pro tips from us: Regularly verify your truck’s actual dimensions, especially overall height, using a tape measure. This is particularly important if you frequently use different trucks, as subtle variations between models or chassis are common. A simple physical measurement can prevent a costly accident.
Trusted external source for general truck dimension regulations and safety guidelines: Federal Motor Carrier Safety Administration (FMCSA) (This link goes to a highly trusted government source).
Conclusion: Mastering the Dims of Your 26ft Morgan Box Truck
The 26ft Morgan box truck is an invaluable asset for countless businesses and individuals, offering impressive cargo capacity and versatility. However, to truly unlock its full potential, a profound understanding of its dimensions – both interior and exterior – is non-negotiable. This isn’t merely about memorizing numbers; it’s about comprehending the practical implications of every measurement on safety, efficiency, and compliance.
From navigating low bridges and tight turns to optimizing cargo space and ensuring legal weight distribution, the "dims on 26ft Morgan box" directly influence every aspect of your operation. By diligently applying the insights and pro tips shared in this comprehensive guide, you can minimize risks, maximize productivity, and ensure that your trucking operations run as smoothly and profitably as possible. Remember, in the world of logistics, knowledge of dimensions isn’t just power – it’s paramount.
